ULTRATREX HIGH POST EXCAVATOR

pic

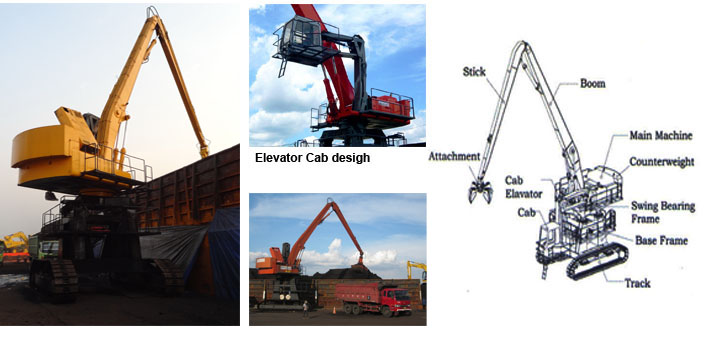

ULTRATREX HIGH POST TYPE EXCAVATOR:

High Post Type Excavator is a sophistically modified excavator from standard excavator. A few models are available. Ultratrex HPT Excavator model are: UT 600, UT 850, UT 1150 and UT 1450. This elevated High Post Type Excavator is able to load and unload break bulk, dry bulk and general cargo improving the overall efficiency and production throughput. The reach ability of the long arm, the lifting capacity of the machine, and the wide visibility from the moving operator's cab are the key elements of success for this machine to be working in the port, yard and mine.

STANDARD FEATURE:

Lifting Arm - The HPT Excavator lifting arm system is an ideal and cost effective alternative to the traditional crane system. With the combination of long boom and long stick, Ultratrex HPT Excavator is able to reach further, lift higher and wider working radius as compared to standard excavator.


Elevator Cab - The HPT Excavator cab is designed to enhance operator's visibility without the limitation of any potential obstruction by low or static objects. The articulation of the cab is via electromechanical control at the operator joystick.


Lifting Attachment - An extensive range of lifting attachment such as clamshell bucket, grab, grapple and other lifting attach ments are available.


SAFETY FEATURE:

Automatic Interlock - A safety control where the machine arm is inoperable when machine is gantries and vice versa, the machine cannot gantries whenever the machine arm is in operation.


Hose Burst Protection Valves - In an event of hydraulic hose burst, activated locking valves will seal and hold the arm in position.


Hydraulic Pilot Check Valve Control - In an event of hydraulic system failure, the pilot check valve will seal and hold the cab elevator in position.


Maximum Load Preset - Pressure relief valve sets the limit of hydraulic pressure, the hydraulic system will stall whenever there is an overload situation.


Maximum Angle - Maximum angle of the machine arm is limited by the fixed total open length of the actuating hydraulic cylinder.


Accessible friendly elevating operator cabin


Revolving light and buzzer during travelling


Safety platform complete with handrails for maintenance purpose.

pic

LIFTING ATTACHMENT:

An extensive of lifting attachment such as clamshell bucket, grab, grapple and other lifting attachment are available.

pic pic pic

Hydraulic Clamshell

Hydraulic Rock Grab

Grapple
