AMPHIBIOUS EXCAVATOR AX330ERPS

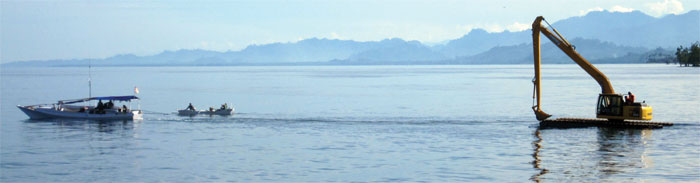

An AMPHITREX is an Amphibious Excavator that can travel and work safely on soft terrain such as swamp, wet land and shallow water. It can float in the water like a boat.

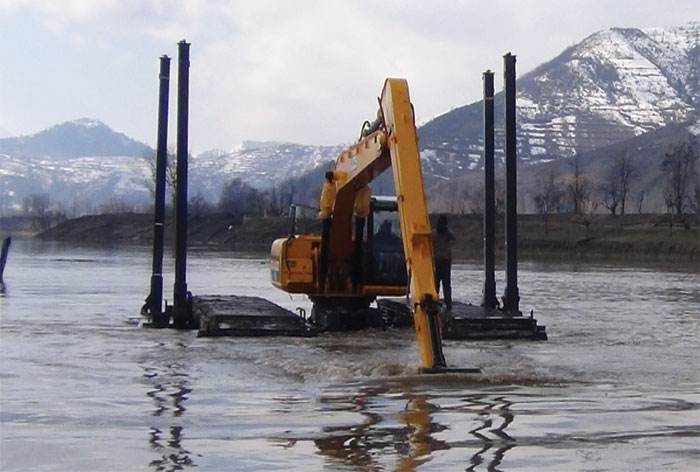

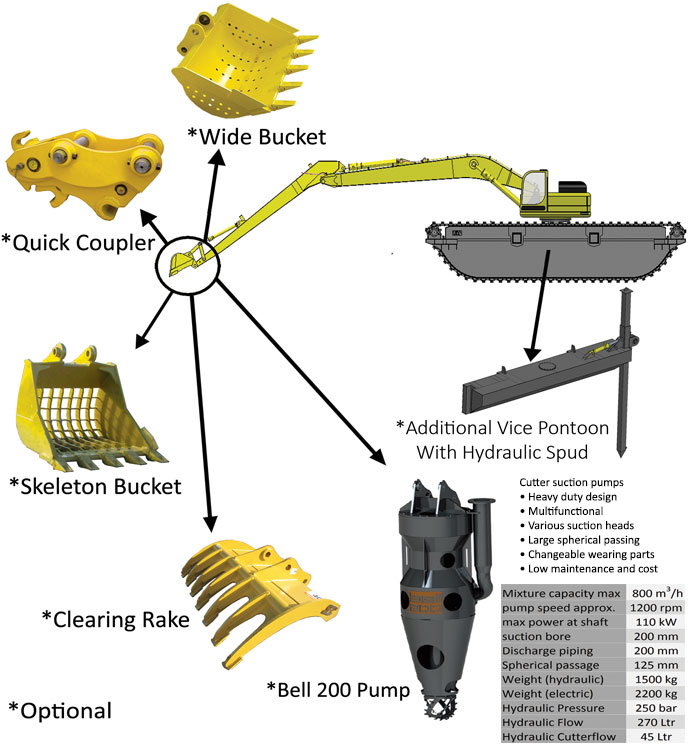

AMPHITREX is Most Effective when it works in areas where the water depth is less than 1.8 meter. For water depth more than 1.8 meter, additional Vice Pontoon with Spuds is required.

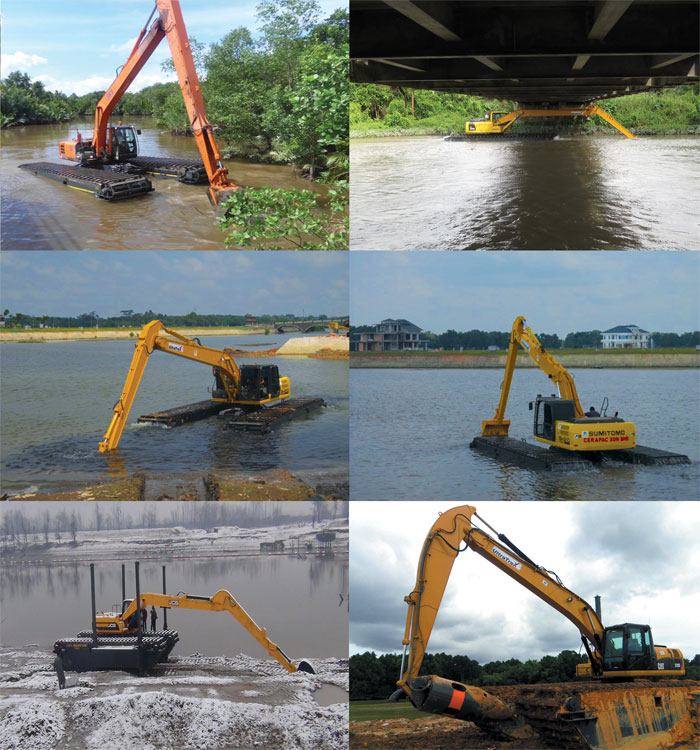

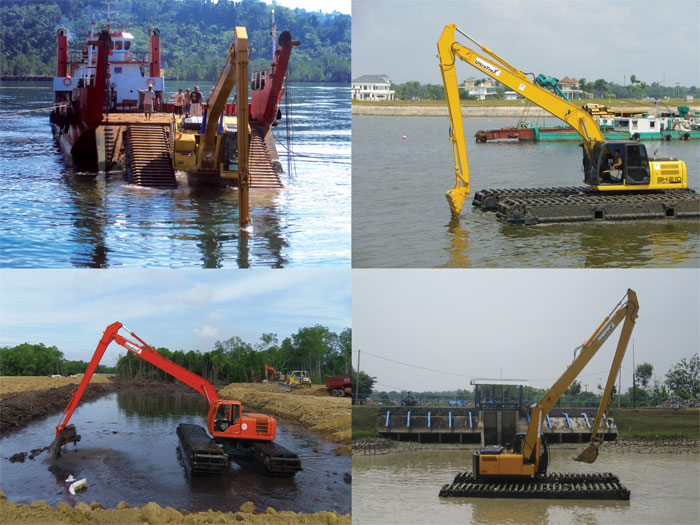

INDUSTRY APPLICATIONS:

• Land Clearing at Mining Area, Plantation and Forest.
• Deepening of Canal, River and River Mouth to the Sea.
• Building Bund for Piling, Flood Prevention and Land Reclamation.
• Building Walls for Fish & Shrimp Ponds and Salt Making Ponds.
• Cleaning of Lakes, Ponds and Water Reservoir.
• Digging Trenches for Oil and Gas Piping Installation.
• Clearing land at Road and Rail Track Construction.
• Transporting and Clearing obstacles at Landslide and Flood hit area.
• Water Irrigation at Paddy Field and Plantation.

GENERAL SPECIFICATION:

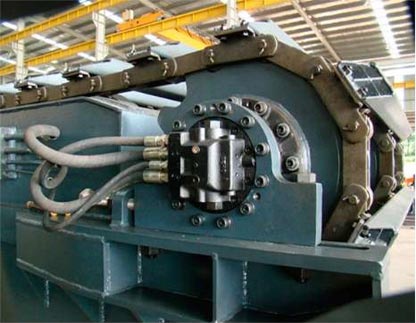

• Undercarriage Pontoon Hydrostatic Drive:
Model: Compact Hydrotrac GFT track drive. Type: Hydrostatic drive with integrated hydraulic 2 speed motors. Working pressure: 350 kgf/cm2. Output torque: >= 2616 kgf.m. Remark: Each Undercarriage Pontoon is equipped with 2 Hydrostatic Drives.

• Maximum Travelling speed: 3.6 km/hour.

• Undercarriage Pontoon Construction:
Atmospheric Corrosion Resistance Alloy Steel Plate. Each Undercarriage Pontoon is equipped with 3 Independent Water Tight Compartments.

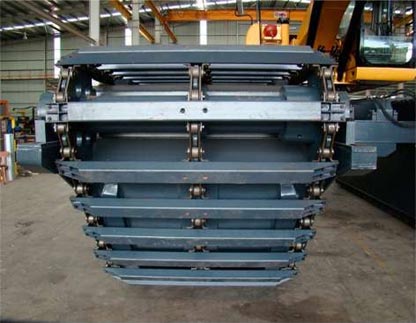

• Track Chain:
Each Under Carriage Pontoon comes with Triple Strands Track Chain and 66 sets of track shoe. Track Chain Pitch: 152.4mm. The Track Chain Rollers are running on Hardox 400 wear plates.

• Operating Weight:
33 tons (Including Hydraulic Excavator upper body and super long reach arm).

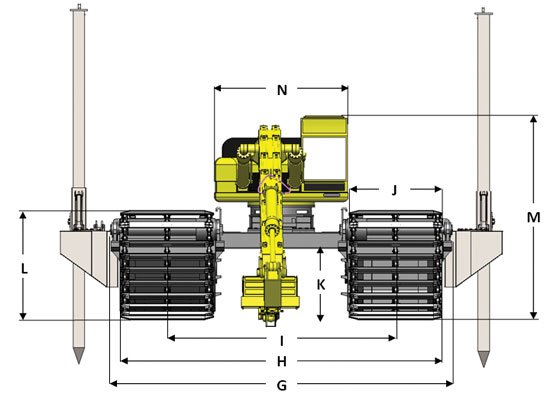

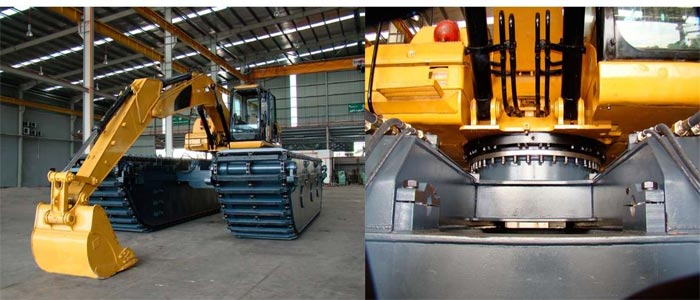

• Hydraulic Extendable and Retractable Undercarriage System

• Ground Contact Pressure:
0.14 kg/cm2 (Ground Contact Pressure of a Standard 20 ton Excavator: 0.4-0.5 kg/cm2).

• Gradeability: 30 degree.
